H10(HP-5000)

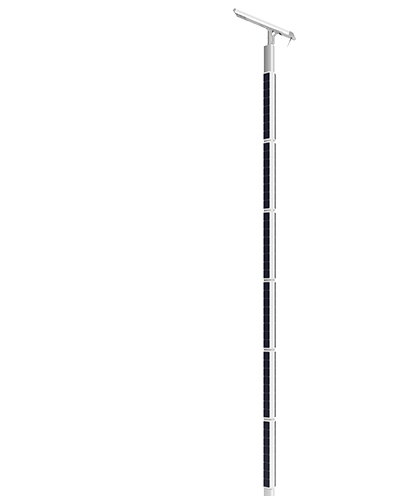

NOMO’s HELIOS displays a Highly Tall Standing, Uniquely Shaped form and well-designed Solar Street Pole light. Having Not only a first impression appearance (look) but a strong wind resistance that have lightweight solar panels on top of the pole as well as the best performance to absorb direct sunlight from any angle during the day, with a performance of higher-level Operating reliability. Additionally, it has more sophisticated technology that can prevent dust, snow, bird poop, or any applications from garden and landscape issues, which often leads to Reducing the generated power efficiency and also cause charge failure.

Maximum Light Output	24000LM
Battery Type	Newest generation LIFEPO4 battery
Battery Capacity	2500WH
Battery Service Life	8 Years at 70% DoD and at 45° ambient
Light Source Type	High Efficiency LED Colour Temperature WW 320K NW 4200K CW 5500K (Customized)
Light Head Lifetime	100,000hours to LM80 specifications
Optical Efficiency	>93%
Solar Panel	560W
Solar Panle Service Life	25Years
Solar Cells	Very High Efficency Proprietary Solar Cells (Greater than 21.5%)
Controller	Microprocessor based Energy Management and Wireless Communications
Pole Height	10m
Dimensions (L x W x H)	1000*280*280mm
Operating Temperature	-15°C to + 70°C
Protection Rating	IP67
Wireless Network	Zigbee Proprietary Wireless Network allows Remote Management and Control of Lights using Internet or GSM.One gateway(DTU)per 200 lights and all the gateway report to a central control room.
